SQLWays (Beta) Web: Data Extraction

This article explains how to configure Data Extraction in the new SQLWays (web-based) tool.  Data extraction is used when you want the tool to read (extract) data from the source database and generate output files for subsequent loading into the target database, or when you want to run a data-only migration (for example, into an already prepared/existing schema).

Data extraction is helpful in the following scenarios:

• Full migration (schema + data): generate converted DDL and export data.
• Migration to an existing database: export and load data only, without recreating table structures.
• Testing / troubleshooting: export only a subset of rows (when available in your build/configuration) to reproduce an issue faster.

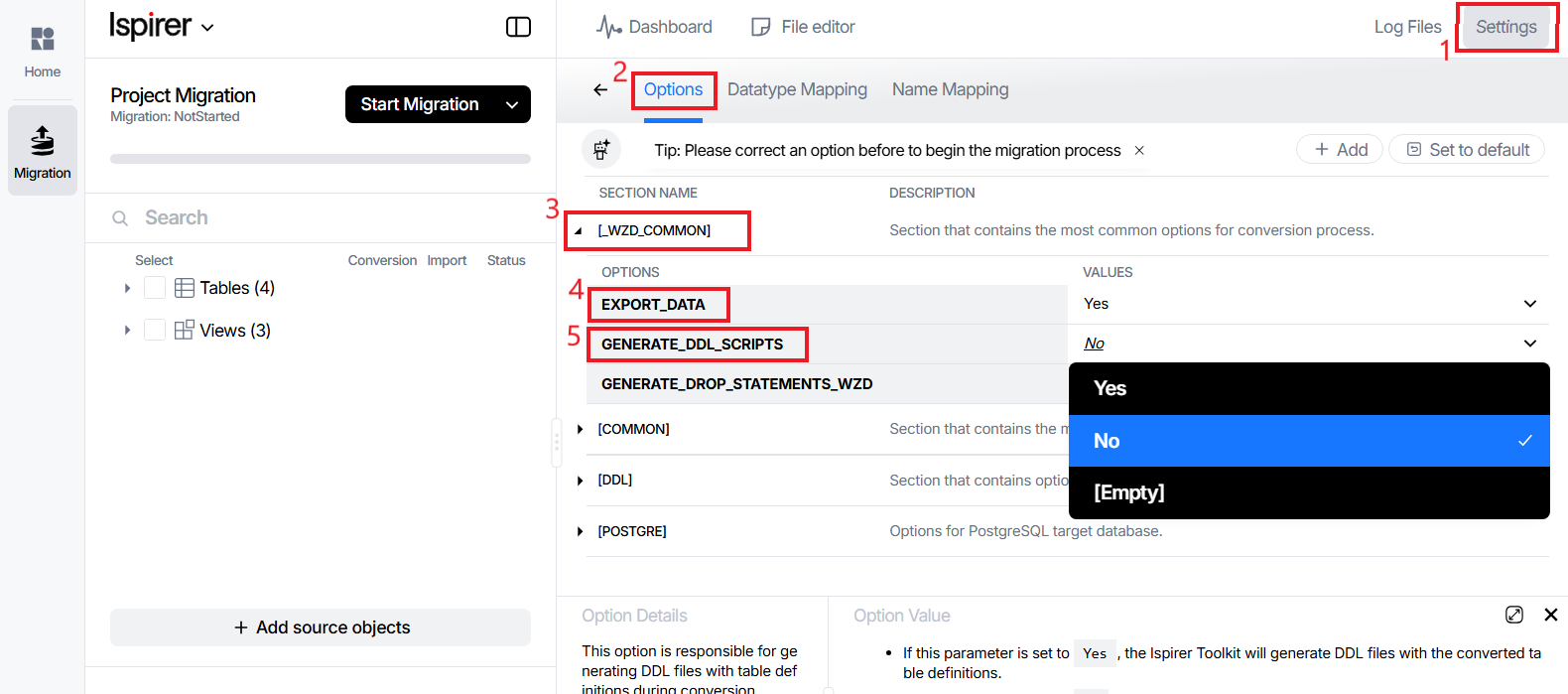

In the new interface, data extraction settings are configured via Options:

1. Open your project.
2. Go to Settings (top-right corner).
3. Open Options.
4. Locate the section [_WZD_COMMON] (This section contains the most common options for the conversion process.
5. Configure the options described below (as shown in the screenshot):

1) EXPORT_DATA

Purpose: Controls whether SQLWays extracts data from the source database.

• Yes — SQLWays will extract/export data from the selected source tables.
• No — Data export will be skipped (only schema/object conversion may occur).
• Empty — Treated as default behavior (commonly equivalent to enabled).

When to enable it: Enable EXPORT_DATA = Yes whenever you want the tool to perform data extraction (either as part of a full migration or for data-only scenarios).

2) GENERATE_DDL_SCRIPTS

Purpose: Controls whether SQLWays generates DDL scripts (converted table definitions) during the run.

• Yes — SQLWays generates DDL output for table structures (converted CREATE statements).
• No — SQLWays does not generate DDL; it extracts data only from the source database.
• Empty — Treated as default behavior.

A) Schema + Data migration (typical case):

• EXPORT_DATA = Yes
• GENERATE_DDL_SCRIPTS = Yes

B) Data-only migration into an existing database: If your target database already contains the required tables and you want to load data without recreating structures, set:

• EXPORT_DATA = Yes
• GENERATE_DDL_SCRIPTS = No

This configuration ensures SQLWays focuses on data extraction and transfer, skipping schema generation.
